Electronic Load

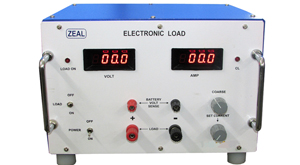

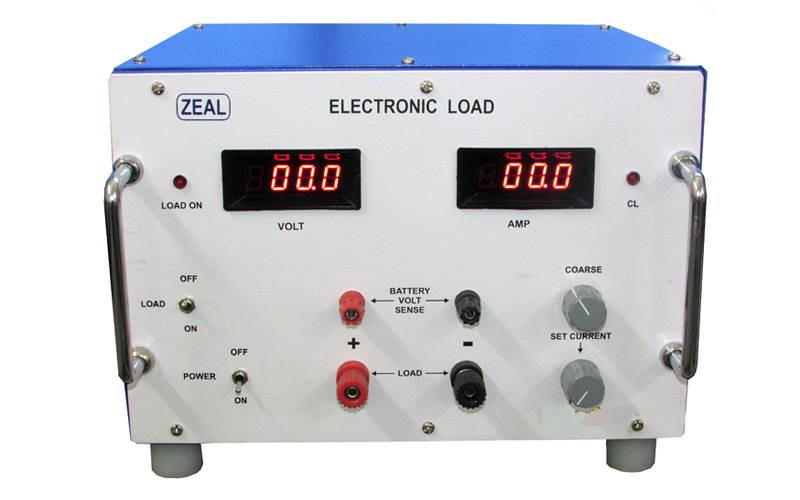

Electronic Load ( 20V / 20A )

Technical Specification
Make
ZEAL
Model
ZMEL400W
Input Power
230 VAC, 50 Hz / 110 VAC, 60 Hz
Range of Current
0 to 20 ADC
Range of Voltage
3 to 20 VDC
Maximum Power 400W
Metering 3½ digit 7 Segment Display to indicate voltage & Current
Controls Load adjustment by coarse & fine potentiometers.
Load ON/OFF by toggle switch.
Indications Load ON/OFF, Constant Load indication by LED
Accuracy Voltage & Current: 0.5% ±3 digits.
Load Control: 0.1 % from 3V to 20V.

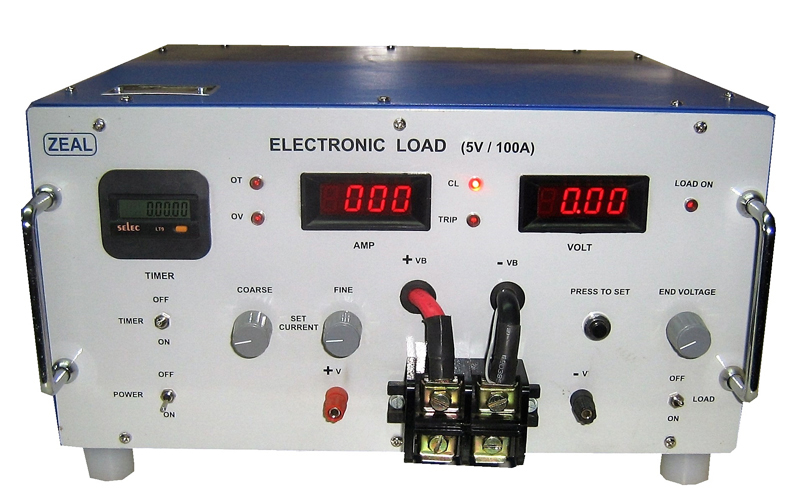

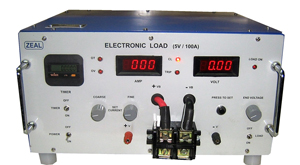

Electronic Load with Time Totalizer ( 5V / 100A )

Technical Specification
Make
ZEAL
Model
ZMEL500W
Input Power
230 VAC, 50 Hz / 110 VAC, 60 Hz
Range of Current
0 to 100 ADC
Range of Voltage
2 to 5 VDC
Maximum Power
500W
Metering
3½ digit 7 Segment Display to indicate voltage & Current
Time Totalizer
9999.59.59 ( HHHH.MM.SS )
Controls Load adjustment by coarse & fine potentiometers.
Load ON/OFF, Time Totalizer ON/OFF by toggle switch.
Setting of End Voltage by using potentiometer &press to set switch on volt meter
Indications LEDs indication to indicate: Load ON/OFF, Constant Load indication, Trip, Over Load, Over Temperature.
Accuracy Voltage & Current: 0.5% ±3 digits.
Load Control: 0.1 % from 2V to 5V.
Protection Against Over Voltage, Over Temperature.








Typical ranges are available :

Range Model Range Model
30V / 300mA ZMEL9W 15V / 25A ZMEL375W
20V / 3A ZMEL60W 20V / 20A ZMEL400W
4V / 20A ZMEL80W 5V / 100A ZMEL500W
30V / 3A ZMEL90W 100V / 8A ZMEL800W
20V / 5A ZMEL100W 30V / 30A ZMEL900W
18V / 6A ZMEL108W 120V / 8A ZMEL960W
15V / 10A ZMEL150W 50V / 20A ZMEL1000W
10V / 20A ZMEL200W 35V / 30A ZMEL1050W
150V / 2A ZMEL300W 60V / 20A ZMEL1200W
15V / 20A ZMEL300W 30V / 50A ZMEL1500W
30V / 10A ZMEL300W 30V / 60A ZMEL1800W
180V / 2A ZMEL360W 20V / 265A ZMEL5300W
