Ground Continuity Testers And Earth Continuity Tester



Make : ZEAL

Model : ZSGCT

Technical Specification (All specifications are valid after warm up of 30 minutes)

• Power: 230V AC, ± 10 % , 50 Hz

• Resistance Measurement Range:  0 to 200 milli Ohm

• Test Current: 30 A ± 1% AC

• Open circuit voltage: 8V, AC

• Current Waveform: Sinusoidal

• Acceptable setting: by press to set switch & potentiometer, using digital milli Ohm  meter

  Programmable Timer: 1 to 60 sec

• Metering: 3 ½ digit Digital V , A  and milli Ohm meter

• Indication Accuracy: V: 1.5% of reading, A: 1.5% of reading, m Ω: 1.5% of reading± 5dgt

• Accuracy of trip resistance: ± 5 m Ω

• Indications:  Trip, Test On, Test Off

• Output test current through high current wire and Earth pin of 3 pin socket.

• Accessory: High Current Crocodile wire / Test Probe

• Method of measurement: Passing a constant AC current (30A) and measuring a voltage

  drop across the resistance to be measured.

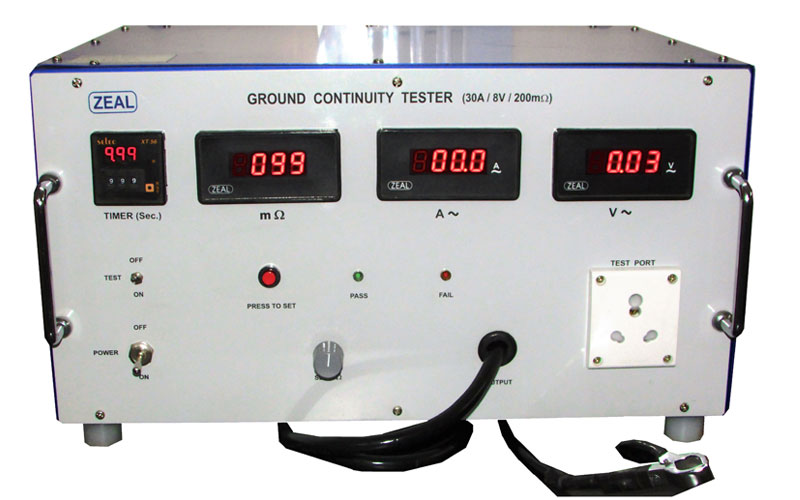

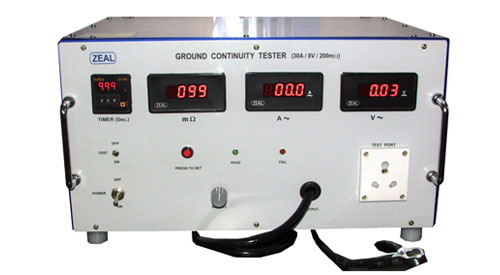

Ground / Earth Continuity Tester
