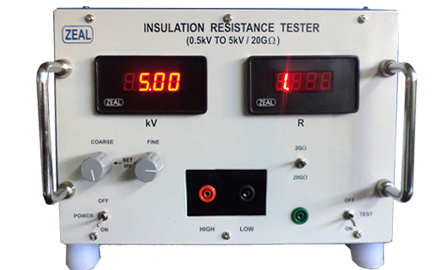

Insulation Resistance Testers ( Mains Operated )



Technical Specification

Make
Zeal
Model
ZSIRT
Power
230V AC, ± 10 % , 50 Hz
Test Voltage
0.50 kV  to 5.00 kV DC ( Regulated), Ripple < 0.1% rms
Test Voltage setting by coarse and fine  potentiometers
Resistance measurement Ranges
0-2.00 GΩ, 20.00 GΩ
Range selection by toggle switch
Metering
3 ½ digit Digital V and Resistance meter
Accuracy
V: 1.0% of reading± 5 dgt @ 100MΩ, G Ω: 1.5% of FS ± 3 dgt
Protection
Against short circuit.
ccessory
Banana to crocodile (Fully insulated)Hi, Lo & Guard

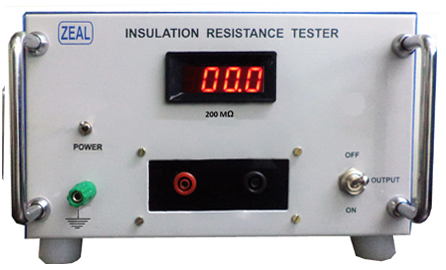

Insulation Resistance Testers



Technical Specification

IR Measurement Range
0 to 5oo MΩ
Test Voltage
500V or 1000 V DC
Meter
31/2  digit LED
Accuracy of Display
1.5 % FS
Accuracy of Test Voltage
+ 2 % @100 MW burden
