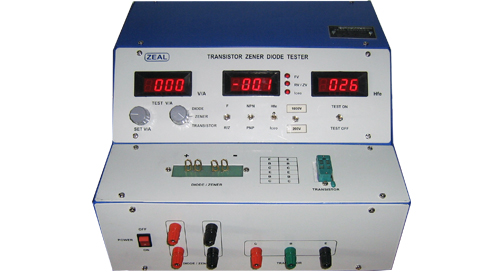

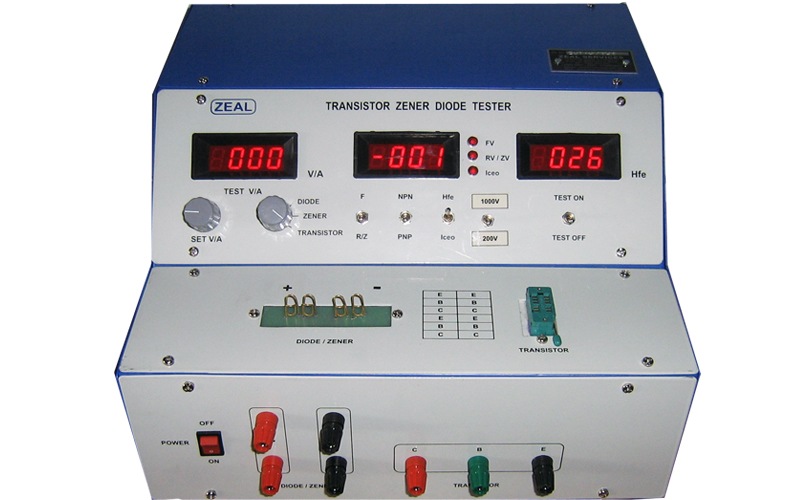

Zener Diode Testers And Transistor Tester



Technical Specification
Make
ZEAL
Model ZMTZDT
Input Power 230 VAC, 50 Hz / 110 VAC, 60 Hz
Hfe Measurement
Test Voltage Range 5.60 Volt VCC
Base Current 8µA
Accuracy of Hfe 1.5%
Ice Measurement
Test Voltage Range 0 to 200 VDC
Leakage Current Range 2000µ
Accuracy 1%
Diode Forward Drop Measurement
Test Current Range 0 to 10A DC
Forward drop Voltage Range 2 VDC
Accuracy 1%
Diode Reverse Voltage Breakdown Measurement
Test Voltage Range 0 to 1000 VDC
Acceptable Leakage Current Range 1 mA DC
Accuracy 1%
Zener Voltage Measurement
Test Voltage Range 2 to 1000 V DC at 20µA max.
Accuracy 1%
Metering 3½ Digit 7 Segment Display
Weight 15 kg.
