We are Manufacturer, Supplier, Exporter of AC DC High Voltag Breakdown Tester, High Voltage Breakdown Tester, Voltage Breakdown Tester and we are also specialized in Calibration Services. Our setup is situated in Pune, Maharashtra, India.
These products are known by other names like High Pot Testers, Voltage Withstand Capability Testers or simply High Voltage Testers also. Designed with better features and accuracy, our offered range of Breakdown Tester is meant for testing the electrical insulation ability and electric strength. ZEAL make testers are ideal for performing high voltage breakdown tests in production, in the laboratory, and for type approvals also. The tester of this category is robustly designed. Standard accessories of the tester include HV test probe, fully insulated crocodile clip & mains cord.

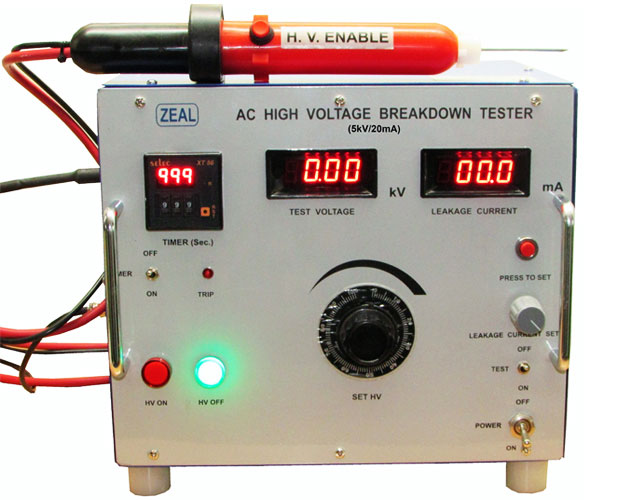

We are Manufacturer, Supplier, Exporter of AC High Voltage Breakdown Testers, High Voltage Breakdown Tester, Voltage Breakdown Tester and we are also specialized in Calibration Services. Our setup is situated in Pune, Maharashtra, India.
| Specification | Details | |
|---|---|---|
| Make | Zeal | |
| Input Power | 230V AC, 50Hz / 110V AC, 60Hz | |
| Voltage Range | 0 to 5kV AC | |
Leakage Current Range |
0 to 20mA | |
| Control | Test voltage setting by knob of variac, Leakage Current can be set by using Potentiometer & Press to set switch on mA Meter. |
|
| Programmable Timer | 0 to 999 second with timer ON/OFF switch. | |
| Features | • Audio/Visual alarm when HV ON & OFF. • Test ON/OFF switch to start or interrupt test. • HV is removed whenever leakage current exceeds than the set value. • LED indication for Trip / Leakage. • Timer ON/OFF switch. |
|
| Metering | 3½ Digit 7 Segment Display | |
| Accuracy | For kV : ±2% FS ±3 digit, For mA : ±1.5 % reading ±2 dgt, Timer : 0.5 Seconds |
| Rating | Model Series |
| 5kV/10mA | ZMHV5A-10 |
| 5kV/20mA | ZMHV5A-20 |
| 5kV/30mA | ZMHV5A-30 |
| 5kV/50mA | ZMHV5A-50 |
| 5kV/100mA | ZMHV5A-100 |
| 5kV/500mA | ZMHV5A-500 |
| 10kV/20mA | ZMHV10A-20 |
| 10kV/30mA | ZMHV10A-30 |
| 10kV/50mA | ZMHV10A-50 |
| 10kV/100mA | ZMHV10A-100 |
| 12kV/400mA | ZMHV12A-400 |
| Rating | Model Series |
| 20kV/20mA | ZMHV20A-20 |
| 20kV/30mA | ZMHV20A-30 |
| 20kV/50mA | ZMHV20A-50 |
| 20kV/100mA | ZMHV20A-100 |
| 20kV/500mA | ZMHV20A-500 |
| 30kV/20mA | ZMHV30A-20 |
| 30kV/30mA | ZMHV30A-30 |
| 30kV/50mA | ZMHV30A-50 |
| 30kV/100mA | ZMHV30A-100 |
| 30kV/500mA | ZMHV30A-500 |
| 50kV/50mA | ZMHV50A-50 |
We are Manufacturer, Supplier, Exporter of DC High Voltage Breakdown Testers, High Voltage Breakdown Tester, Voltage Breakdown Tester and we are also specialized in Calibration Services. Our setup is situated in Pune, Maharashtra, India.
These products are known by other names like High Pot Testers, Voltage Withstand Capability Testers or simply High Voltage Testers also. Designed with better features and accuracy, our offered range of Breakdown Tester is meant for testing the electrical insulation ability and electric strength. ZEAL make testers are ideal for performing high voltage breakdown tests in production, in the laboratory, and for type approvals also. The tester of this category is robustly designed. Standard accessories of the tester include HV test probe, fully insulated crocodile clip & mains cord.
| Specification | Details | |
|---|---|---|
| Make | ZEAL | |
| Power | 230V AC, 50Hz | |
| Voltage Range | 0 to 5kV DC | |
Leakage Current Range |
0 to 20mA | |
| Trip Current setting | by press to set switch & potentiometer, using digital mA meter Test Voltage Range Settable by knob of Variac. | |
| Programmable Timer | 0 to 999 second with timer ON/OFF switch. | |
| Metering | 3½ digit Digital kV and mA meter | |
| Resolution | 0.01kV, 0.1mA respectively | |
| Accuracy: Kv | 2% of reading ±3 dgt, mA: 1.5% of reading ±2 dgt, | |
| Timer | ± 0.5 second | |
| Features | • Audio/Visual alarm when HV ON & OFF. • Test ON/OFF switch to start or interrupt test. • HV is removed whenever leakage current exceeds than the set value. • LED indication for Trip / Leakage. • Timer ON/OFF switch. |
|
| Indications | Trip, HV ON, HV OFF |
| Rating | Model Series |
| 5kV/10mA | ZMHV5D-10 |
| 5kV/20mA | ZMHV5D-20 |
| 5kV/30mA | ZMHV5D-30 |
| 5kV/50mA | ZMHV5D-50 |
| 5kV/100mA | ZMHV5D-100 |
| 5kV/500mA | ZMHV5D-500 |
| 10kV/20mA | ZMHV10D-20 |
| 10kV/30mA | ZMHV10D-30 |
| 10kV/50mA | ZMHV10D-50 |
| 10kV/100mA | ZMHV10D-100 |
| Rating | Model Series |
| 20kV/20mA | ZMHV20D-20 |
| 20kV/30mA | ZMHV20D-30 |
| 20kV/50mA | ZMHV20D-50 |
| 20kV/100mA | ZMHV20D-100 |
| 20kV/500mA | ZMHV20D-500 |
| 30kV/20mA | ZMHV30D-20 |
| 30kV/30mA | ZMHV30D-30 |
| 30kV/50mA | ZMHV30D-50 |
| 30kV/100mA | ZMHV30D-100 |
| 30kV/500mA | ZMHV30D-500 |

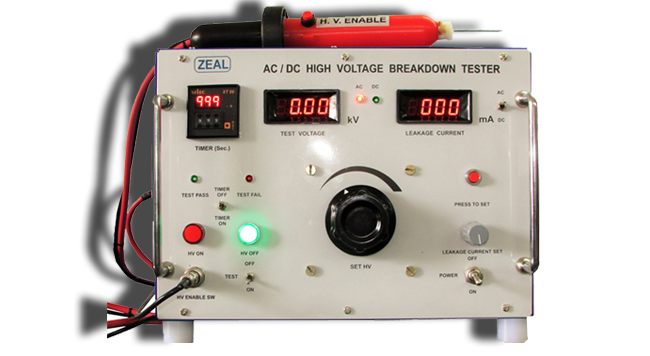

We are Manufacturer, Supplier, Exporter of AC/DC High Voltage Breakdown Testers, High Voltage Breakdown Tester, Voltage Breakdown Tester and we are also specialized in Calibration Services. Our setup is situated in Pune, Maharashtra, India.
These products are known by other names like High Pot Testers, Voltage Withstand Capability Testers or simply High Voltage Testers also. Designed with better features and accuracy, our offered range of Breakdown Tester is meant for testing the electrical insulation ability and electric strength. ZEAL make testers are ideal for performing high voltage breakdown tests in production, in the laboratory, and for type approvals also. The tester of this category is robustly designed. Standard accessories of the tester include HV test probe, fully insulated crocodile clip & mains cord.
| Specification | Details |
|---|---|
| Make | ZEAL |
| Power | 230V AC, 50Hz |
| DC Voltage Range | 0 to 5kV DC |
DC Leakage Current Range |
0 to 20mA |
| AC Voltage Range | 0 to 5kV AC |
| AC Leakage Current Range | 0 to 20mA AC/DC Range Selection: AC/DC Selection by Short Link |
| Test Voltage Range Settable | by knob of Variac |
| Trip Current setting | by press to set switch & potentiometer, using digital mA meter |
| Programmable Timer | 0 to 999 second with timer ON/OFF switch. |
| Metering | 3½ digit Digital kV and mA meter |
| Resolution | 0.01kV, 0.1mA respectively |
| Accuracy | kV:2% of reading ±3dgt, mA: 1.5% of reading ±2 dgt, Time: ±0.5 second |
| Features | • Audio/Visual alarm when HV ON & OFF. • Test ON/OFF switch to start or interrupt test. • HV is removed whenever leakage current exceeds than the set value. • LED indication for Trip / Leakage. • Timer ON/OFF switch. |
| Indications | Trip, HV ON, HV OFF |
| Rating | Model Series |
| 5kV/10mA | ZMHV5A5D-10 |
| 5kV/20mA | ZMHV5A5D-20 |
| 5kV/30mA | ZMHV5A5D-30 |
| 5kV/50mA | ZMHV5A5D-50 |
| 5kV/100mA | ZMHV5A5D-100 |
| 5kV/500mA | ZMHV5A5D-500 |
| 10kV/20mA | ZMHV10A10D-20 |
| 10kV/30mA | ZMHV10A10D-30 |
| 10kV/50mA | ZMHV10A10D-50 |
| 10kV/100mA | ZMHV10A10D-100 |
| Rating | Model Series |
| 20kV/20mA | ZMHV20A20D-20 |
| 20kV/30mA | ZMHV20A20D-30 |
| 20kV/50mA | ZMHV20A20D-50 |
| 20kV/100mA | ZMHV20A20D-100 |
| 20kV/500mA | ZMHV20A20D-500 |
| 30kV/20mA | ZMHV30A20D-20 |
| 30kV/30mA | ZMHV30A20D-30 |
| 30kV/50mA | ZMHV30A20D-50 |
| 30kV/100mA | ZMHV30A20D-100 |
| 30kV/500mA | ZMHV30A20D-500 |
We are Manufacturer, Supplier, Exporter of Programmable High Voltage Breakdown Testers and we are also specialized in Calibration Services. Our setup is situated in Pune, Maharashtra, India.
These products are known by other names like High Pot Testers, Voltage Withstand Capability Testers or simply High Voltage Testers also. Designed with better features and accuracy, our offered range of Breakdown Tester is meant for testing the electrical insulation ability and electric strength. ZEAL make testers are ideal for performing high voltage breakdown tests in production, in the laboratory, and for type approvals also. The tester of this category is robustly designed. Standard accessories of the tester include HV test probe, fully insulated crocodile clip & mains cord.
| Specification | Details |
|---|---|
| Series | ZMPHVT |
| Input Power Supply | 230V AC, 50Hz |
| Display | 20 x 4 LCD display to indicate Output conditions |
| Accuracy | ±1% FS ±3 digit for kV |
| ±1.5% reading ±2 digit for mA | |
| PC Interface | Rs232 communication |
| Indications | TEST PASS, TEST FAIL, HV ON, HV OFF |
| AC | DC | AC/DC | Range |
| ZMHV5A-30 | ZMHV5D-30 | ZMHV5A5D-30 | 5kV /30mA |
| ZMHV5A-50 | ZMHV5D-50 | ZMHV5A5D-50 | 5kV / 50mA |
| ZMHV5A-100 | ZMHV5D-100 | ZMHV5A5D-100 | 5kV / 100mA |
| ZMHV5A-500 | ZMHV5D-500 | ZMHV5A5D-500 | 5kV / 500mA |
| ZMHV10A-30 | ZMHV10D-30 | ZMHV10A10D-30 | 10kV / 30mA |
| ZMHV10A-50 | ZMHV10D-50 | ZMHV10A10D-50 | 10kV / 50mA |
| ZMHV10A-100 | ZMHV10D-100 | ZMHV10A10D-100 | 10kV / 100mA |
| ZMHV10A-500 | ZMHV10D-500 | ZMHV10A10D-500 | 10kV / 500mA |
| ZMHV20A-20 | ZMHV20D-20 | ZMHV20A20D-20 | 20kV / 20mA |
| ZMHV20A-30 | ZMHV20D-30 | ZMHV20A20D-30 | 20kV / 30mA |
| ZMHV20A-50 | ZMHV20D-50 | ZMHV20A20D-50 | 20kV / 50mA |
| ZMHV30A-20 | ZMHV30D-20 | ZMHV30A30D-20 | 30kV / 20mA |
Note: High Test Voltage & High Leakage Current range can be customized as per customer requirement.
