AC / DC High Voltage Measurement Probe

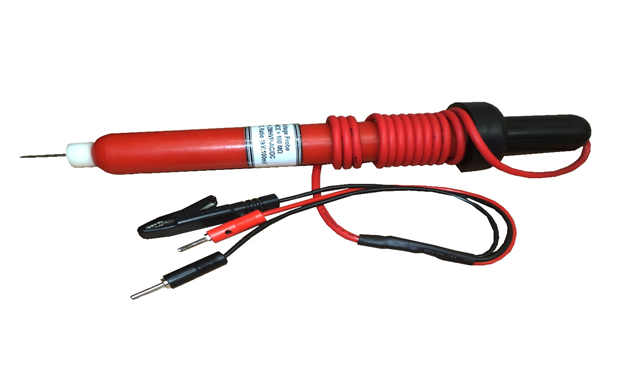

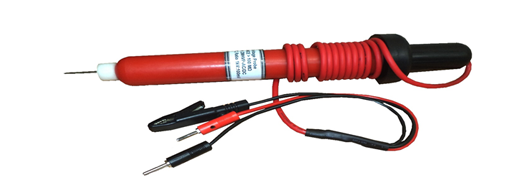

AC / DC High Voltage Measurement Probe - (40kV)
Technical Specification :
Make ZEAL
Model ZMHVP-ACDC 40kV
Range 0-40kV AC/DC
Attenuation Ratio 1kV: 100mV
Input Impedance > 200 MΩ
Accuracy: For DC up to 20 kV: 1%, above 20kV add 0.08%/kV. For AC up to 20 kV: 1.5% above 20kV add 0.12%/kV. With 3 ½ DMM
Accessories 3.5 digit DMM

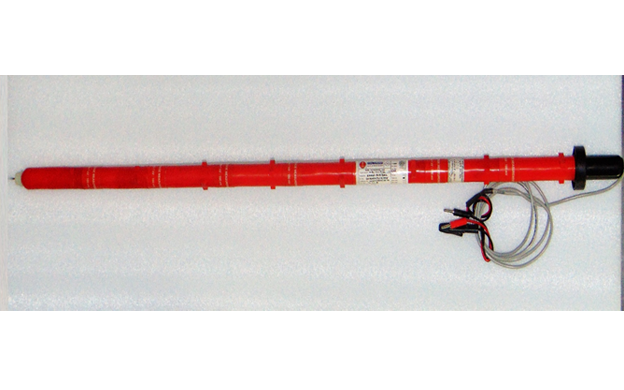

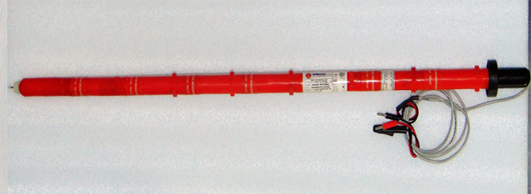

AC / DC High Voltage Measurement Probe - (100kV)

Technical Specification :
Make ZEAL
Model ZMHVP-ACDC 100kV
Range 0-100 kV AC & DC
Attenuation Ratio 1kV: 100mV
Input Impedance > 200 MΩ
Accuracy: For DC up to 40 kV: 2%, above 40 kV add 0.05%/kV For AC up to 40 kV: 2.5%, above 40kV add 0.08%/kV
Accessories 3.5 digit DMM

Note : We Can Upgrade Products With Time To Give Improved Quality
