Our DC regulated power supplies are widely used in various industries and Educational Institutes. The output voltage produced by DC power supply ranges from 0 to 1000 V and output current ranges from 0 to 100 Amp. Power supply are provided with Digital Panel Meters for voltage and current. They are provided overload and short circuit protections.

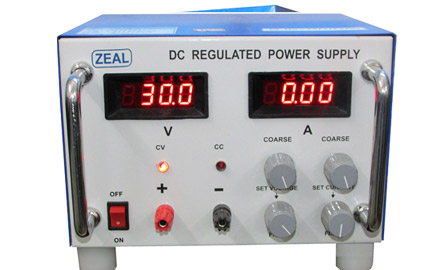

DC Regulated Power Supply ( 30V / 5A )
Technical Specification (Only for Reference)
| Make | ZEAL |
| Output Voltage Range | 0 to 30 V |
| Output Current | 0 to 5 amp. |
| Load Regulation | +/- 0.05 % ( From No Load to Full Load) |
| Line Regulation | +/- 0.05 % |
| Ripple | +/- 0.05 % rms |
| Digital Meter | ( Separate Meter For DC Voltage & current) |
| Accuracy | For Voltage : 0.5% +/- 2 dgt |
| For Current : 0.5% +/- 2 dgt | |
| Protection | Overload & Short circuit |
| Operating Temperature | 0 to 50o C |
| Input Power Requirement | 230 V or 110 V +/- 10 %, 50 / 60 Hz |
Typical ranges are available
| Rating | Model Series |
| 24V/1A | ZMPS24-1 |
| 24V/2A | ZMPS24-2 |
| 24V/5A | ZMPS24-5 |
| 24V/10A | ZMPS24-10 |
| 24V/20A | ZMPS24-20 |
| 30V/1A | ZMPS30-1 |
| 30V/2A | ZMPS30-2 |
| 30V/5A | ZMPS30-5 |
| 30V/10A | ZMPS30-10 |
| 30V/20A | ZMPS30-20 |
| 60V/2A | ZMPS60-2 |
| 60V/10A | ZMPS60-10 |
| 60V/20A | ZMPS60-20 |
| Rating | Model Series |
| 30V/30A | ZMPS30-30 |
| 30V/50A | ZMPS30-50 |
| 30V/100A | ZMPS30-100 |
| 60V/40A | ZMPS60-40 |
| 100V/2A | ZMPS100-2 |
| 100V/10A | ZMPS100-10 |
| 100V/25A | ZMPS100-25 |
| 150V/2A | ZMPS150-2 |
| 150V/10A | ZMPS150-10 |
| 200V/10A | ZMPS200-10 |
| 200V/100A | ZMPS200-100 |
| 1000V/5A | ZMPS1000-5 |
| 10V/1000A | ZMPS10-1000 |
Note : High Voltage & Haigh Current Range Can Be Customized As Per Requirements.
Note : We Can Upgrade Products With Time To Give Improved Quality
