Description
These products are known by other names like Hi Pot Testers, Voltage Withstand Capability Testers or simply High Voltage Testers also. Designed with better features and accuracy, our offered range of Breakdown Tester is meant for testing the electrical insulation ability and electric strength. ZEAL make testers are ideal for performing high voltage breakdown tests in production, in the laboratory, and for type approvals also. The tester of this category is robustly designed. Standard accessories of the tester include HV test probe, fully insulated crocodile clip & mains cord.

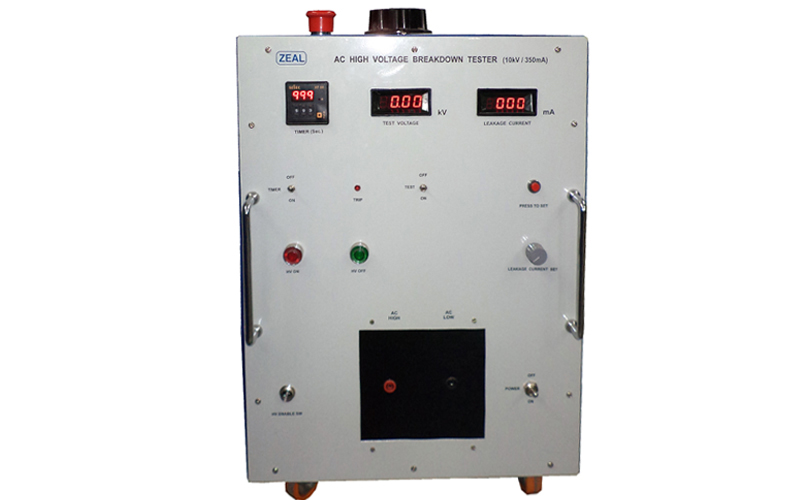

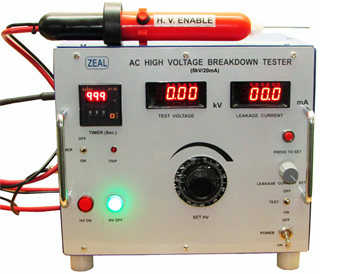

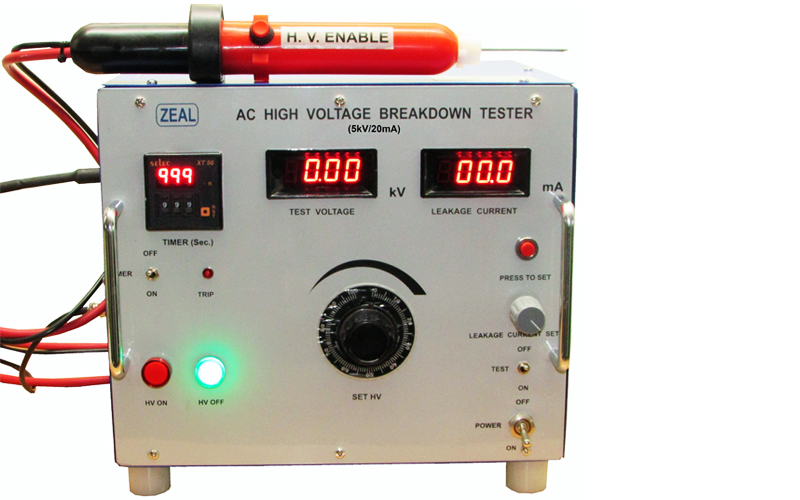

AC High Voltage Breakdown Tester
Typical Technical Specification
| Make | Zeal |
| Input Power | 230 VAC, 50 Hz / 110 VAC, 60 Hz |
| Voltage Range | 0 to 5kV AC |
Leakage Current Range |
0 to 20mA |
| Control | Test voltage setting by knob of variac, Leakage Current can be set by using Potentiometer & Press to set switch on mA Meter |
| Programmable Timer | 0 to 999 second with timer ON/OFF switch. |
| Features | • Audio/Visual alarm when HV ON & OFF. • Test ON/OFF switch to start or interrupt test. • HV is removed whenever leakage current exceeds than the set value. • LED indication for Trip / Leakage. • Timer ON/OFF switch |
| Metering | 3½ Digit 7 Segment Display |
| Accuracy | For kV : ± 2% FS ± 3 digit, For mA : ±1.5 % reading ± 2 dgt, Timer : 0.5 Seconds |
AC High Voltage Breakdown Tester
| Rating | Model Series |
| 5kV/10mA | ZMHV5A-10 |
| 5kV/20mA | ZMHV5A-20 |
| 5kV/30mA | ZMHV5A-30 |
| 5kV/50mA | ZMHV5A-50 |
| 5kV/100mA | ZMHV5A-100 |
| 5kV/500mA | ZMHV5A-500 |
| 10kV/20mA | ZMHV10A-20 |
| 10kV/30mA | ZMHV10A-30 |
| 10kV/50mA | ZMHV10A-50 |
| 10kV/100mA | ZMHV10A-100 |
| 12kV/400mA | ZMHV12A-400 |
| Rating | Model Series |
| 20kV/20mA | ZMHV20A-20 |
| 20kV/30mA | ZMHV20A-30 |
| 20kV/50mA | ZMHV20A-50 |
| 20kV/100mA | ZMHV20A-100 |
| 20kV/500mA | ZMHV20A-500 |
| 30kV/20mA | ZMHV30A-20 |
| 30kV/30mA | ZMHV30A-30 |
| 30kV/50mA | ZMHV30A-50 |
| 30kV/100mA | ZMHV30A-100 |
| 30kV/500mA | ZMHV30A-500 |

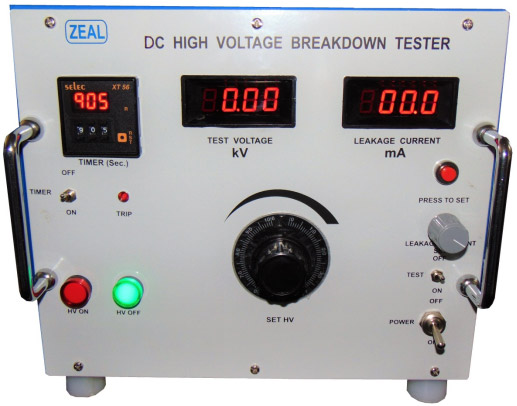

DC High Voltage Breakdown Tester
Typical Technical Specification
| Make | ZEAL |
| Power | 230V AC, 50 Hz |
| Voltage Range | 0 to 5kV DC |
Leakage Current Range |
0 to 20mA |
| Trip Current setting | by press to set switch & potentiometer, using digital mA meter Test Voltage Range Settable by knob of Variac. |
| Programmable Timer | 0 to 999 second with timer ON/OFF switch. |
| Metering | 3 ½ digit Digital kV and mA meter |
| Resolution | 0.01kV, 0.1mA respectively |
| Accuracy: Kv | 2% of reading ± 3 dgt, mA: 1.5% of reading ± 2 dgt, |
| Timer | ± 0.5 second |
| Features | • Audio/Visual alarm when HV ON & OFF. • Test ON/OFF switch to start or interrupt test. • HV is removed whenever leakage current exceeds than the set value. • LED indication for Trip / Leakage. • Timer ON/OFF switch |
| Indications | Trip, HV On, HV Off |
DC High Voltage Breakdown Tester
| Rating | Model Series |
| 5kV/10mA | ZMHV5D-10 |
| 5kV/20mA | ZMHV5D-20 |
| 5kV/30mA | ZMHV5D-30 |
| 5kV/50mA | ZMHV5D-50 |
| 5kV/100mA | ZMHV5D-100 |
| 5kV/500mA | ZMHV5D-500 |
| 10kV/20mA | ZMHV10D-20 |
| 10kV/30mA | ZMHV10D-30 |
| 10kV/50mA | ZMHV10D-50 |
| 10kV/100mA | ZMHV10D-100 |
| Rating | Model Series |
| 20kV/20mA | ZMHV20D-20 |
| 20kV/30mA | ZMHV20D-30 |
| 20kV/50mA | ZMHV20D-50 |
| 20kV/100mA | ZMHV20D-100 |
| 20kV/500mA | ZMHV20D-500 |
| 30kV/20mA | ZMHV30D-20 |
| 30kV/30mA | ZMHV30D-30 |
| 30kV/50mA | ZMHV30D-50 |
| 30kV/100mA | ZMHV30D-100 |
| 30kV/500mA | ZMHV30D-500 |

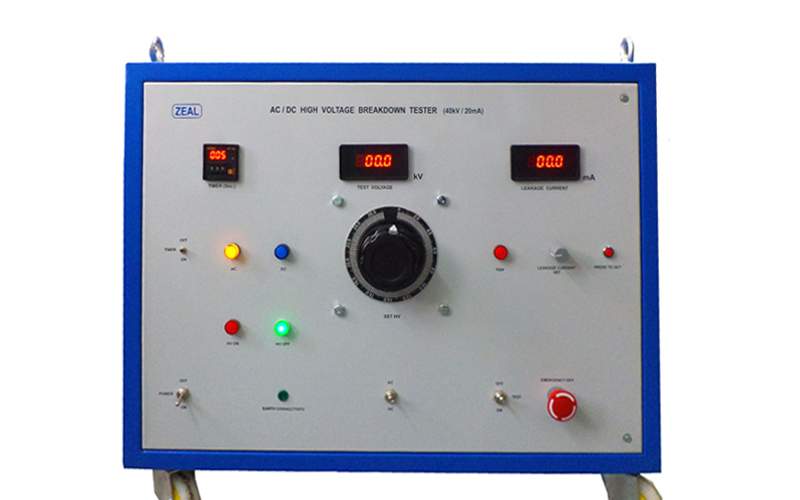

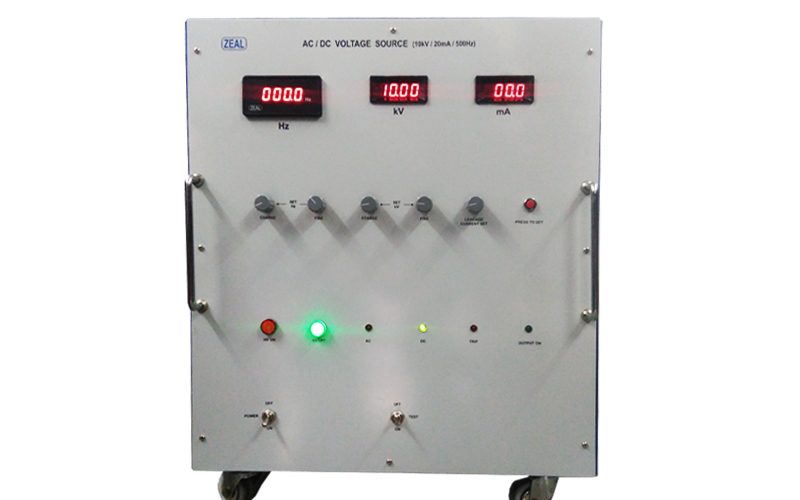

AC/DC High Voltage Breakdown Tester
Typical Technical Specification
| Make | ZEAL |
| Power | 230V AC, 50 Hz |
| DC Voltage Range | 0 to 5kV DC |
DC Leakage Current Range |
0 to 20mA |
| AC Voltage Range | 0 to 5kV AC |
| AC Leakage Current Range | 0 to 20mA AC/DC Selection by Slide window. |
| Test Voltage Range Settable | by knob of Variac |
| Trip Current setting | by press to set switch & potentiometer, using digital mA meter |
| Programmable Timer | 0 to 999 second with timer ON/OFF switch. |
| Metering | 3 ½ digit Digital kV and mA meter |
| Resolution | 0.01kV, 0.1mA respectively |
| Accuracy | kV:2% of reading ± 3dgt, mA: 1.5% of reading ± 2 dgt, Time:±0.5 second |
| Features | • Audio/Visual alarm when HV ON & OFF. • Test ON/OFF switch to start or interrupt test. • HV is removed whenever leakage current exceeds than the set value. • LED indication for Trip / Leakage. • Timer ON/OFF switch |
| Indications | Trip, HV On, HV Off |

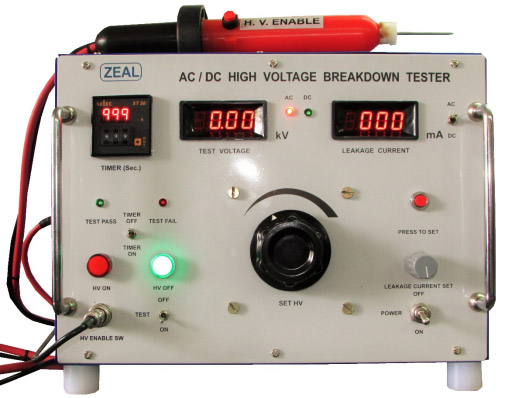

AC / DC High Voltage Breakdown Tester
| Rating | Model Series |
| 5kV/10mA | ZMHV5A5D-10 |
| 5kV/20mA | ZMHV5A5D-20 |
| 5kV/30mA | ZMHV5A5D-30 |
| 5kV/50mA | ZMHV5A5D-50 |
| 5kV/100mA | ZMHV5A5D-100 |
| 5kV/500mA | ZMHV5A5D-500 |
| 10kV/20mA | ZMHV10A10D-20 |
| 10kV/30mA | ZMHV10A10D-30 |
| 10kV/50mA | ZMHV10A10D-50 |
| 10kV/100mA | ZMHV10A10D-100 |
| Rating | Model Series |
| 20kV/20mA | ZMHV20A20D-20 |
| 20kV/30mA | ZMHV20A20D-30 |
| 20kV/50mA | ZMHV20A20D-50 |
| 20kV/100mA | ZMHV20A20D-100 |
| 20kV/500mA | ZMHV20A20D-500 |
| 30kV/20mA | ZMHV30A20D-20 |
| 30kV/30mA | ZMHV30A20D-30 |
| 30kV/50mA | ZMHV30A20D-50 |
| 30kV/100mA | ZMHV30A20D-100 |
| 30kV/500mA | ZMHV30A20D-500 |
