Decade Boxes or Decade RLC Boxes

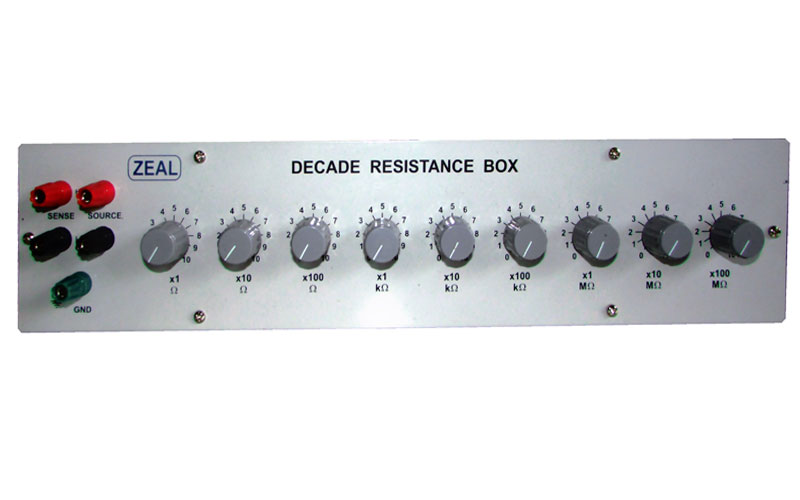

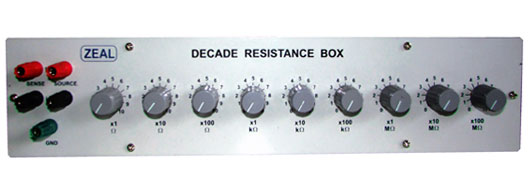

DECADE RESISTANCE BOXES

We are Manufacturer, Supplier, Exporter of Decade Boxes or Decade RLC Boxes. We are specialized in Calibration Services of such products. Our setup is situated in Pune, Maharashtra, India.


Technical Specification :
Make ZEAL
Model ZMDRB
Decades Range 1 Ω, 10 Ω, 100 Ω, 1 kΩ, 10 kΩ, 100 kΩ, 1 MΩ, 10 MΩ & 100 MΩ
Total Resistance Range 1 Ω to 1111.11111 MΩ
Zero Resistance < 60 mΩ
Basic Stability 100 PPM for 10 Ω to 10 MΩ
Accuracy 0.2% for : 1 Ω
0.1% for : 10 Ω, 100 Ω, 1 kΩ, 10 kΩ, 100 kΩ, 1MΩ & 10 MΩ
0.5% for : 100 MΩ
Weight 2 kg.

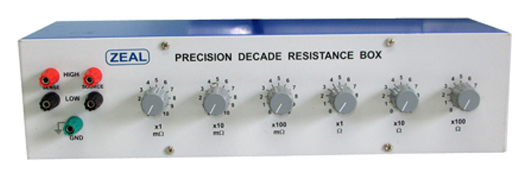

Precision Decade Resistance Boxes
Make ZEAL
Model ZMPDRB
Decades Range 1 mΩ, 10 mΩ, 100mΩ, 1 Ω, 10 Ω & 100 Ω
Total Resistance Range 1 mΩ to 1.11111 kΩ
Zero Resistance < 10 mΩ
Basic Stability 100 PPM
Accuracy 5.0% for : 1 mΩ.
2.5% for : 10 mΩ.
1.5% for : 100 mΩ.
0.2% for : 1 Ω.
0.1% for : 10 Ω & 100 Ω.
Weight 2 kg.

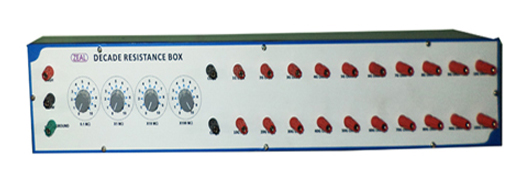

Decade Resistance Box with fix resistors
Make ZEAL
Model ZMDRB-0.1M-100G
Specifications Decades of 0.1 MΩ, 1 MΩ, 10 MΩ, 100 MΩ
Fixed Resistors : 1 GΩ, 2 GΩ, 3 GΩ  4 GΩ, 5 GΩ, 6 GΩ, 7 GΩ, 8 GΩ,
9 GΩ,  10GΩ, 20 GΩ, 30 GΩ, 40 GΩ, 50 GΩ,  60 GΩ, 70 GΩ, 80 GΩ, 90 GΩ, 100 GΩ
Accuracy ± 5% for all decades and fixed resistors
10 Fix resistors 1 GΩ x 10 in series mounted on acrylic
10 Fix resistors 10GΩ x10 in series mounted on acrylic
Test Voltage 1000V : for 0.1 M Ω,1 M Ω,10 M Ω, 100 MΩ
5000V : for all fixed resistors
Dials of 0.1 MΩ, 1 MΩ, 10 MΩ, and 100 MΩ can be used at 5000V when connected in series with any fixed resistor
Power Rating 1 Watt @ 500C

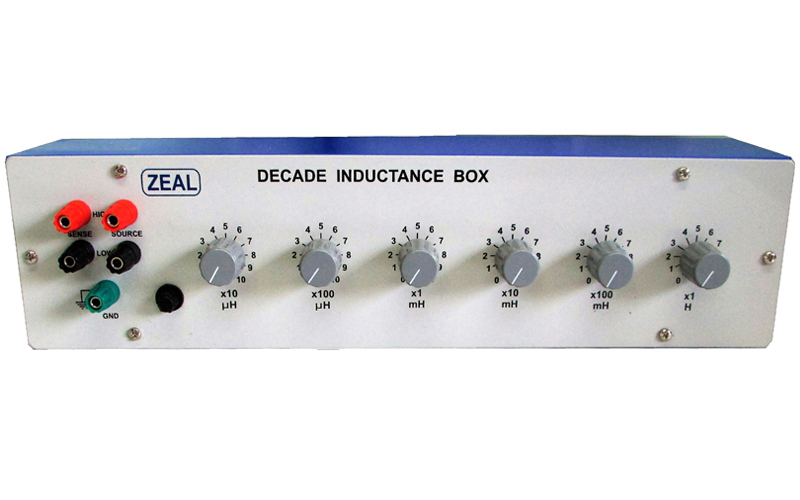

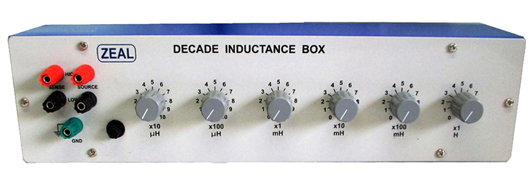

Decade Inductance Boxes
Make ZEAL
Model ZMDIB
Specifications Decades of 10μH, 100μH, 1mH, 10mH, 100mH, 1H
Total Inductance range 10 μH to 1H
Accuracy 1% at 1 kHz
Residual Inductance < 1 μH

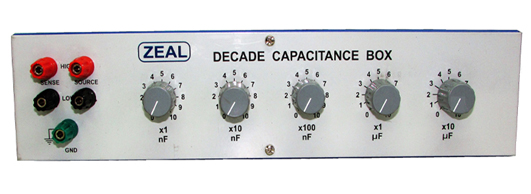

Decade Capacitance Boxes
Make ZEAL
Model ZMDCB
Specifications Decades of 1nF, 10nF, 100nF, 1μF, 10μF
Total capacitance Range 111.111 μF
Accuracy 1% at 1 kHz
Residual Capacitance < 15 pF

Note : We Can Upgrade Products With Time To Give Improved Quality
