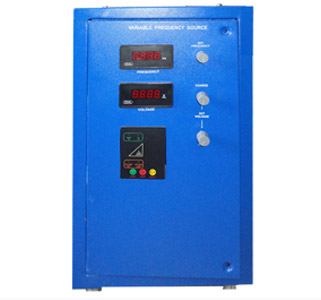

Technical Specification
Make |
ZEAL |
| Input Power | 230 Volt ± 10% AC, 50 Hz |
Output Voltage Range |
5 to 200 V (Sine wave) |
Max Current |
5 Amps (with overload protection) |
Compliance |
1000 VA, at FS of each range |
Output Frequency Range |
50 to 60 Hz. |
Meters |
3½ - digit AC voltmeter, 4 - digit frequency meter 3½ - digit AC Current meter with 2 ranges (range1 : 2A, range2 : 5A) |
Accuracy of V |
1.5% ± 3digit, Resolution: 0.1 V |
Accuracy of Hz |
± 2digit, Resolution: 0.1 Hz |
Accuracy of A: |
1 % ±3, digit, |
Protection: |
Against Overload & Short circuit with trip indication by LED |
Controls: |
Range selection by toggle switch on panel Power ON/OFF by toggle switch on panel |
Setting of Voltage & Frequency and Current: |
By Multi turn potentiometers |
High Frequency Stunner
Technical Specification
Make |
ZEAL |
| Input Power | 230 Volt ±10% AC, 50 Hz |
Output Voltage Range |
5 to 200 V (Sine wave) |
Max Current |
5 Amps (with overload protection) |
Compliance |
1000 VA, at FS of each range |
Metering |
AC Ammeter, Frequency meter |
Output Frequency Range |
50 to 2000 Hz. |
Meters |
4-digit AC voltmeter, 4-digit frequency meter 4-digit AC Current meter with 2 ranges (range1: 2A, range2: 5A) |
Accuracy of V |
1.5% ±10digit, Resolution: 0.1 V |
Accuracy of Hz |
± 2digit, Resolution: 0.1 Hz |
Accuracy of A: |
1 % ±3, digit, |
Protection: |
Against Overload & Short circuit with trip indication by LED |
Controls: |
Range selection by toggle switch on panel Power ON/OFF by toggle switch on panel |
Setting of Voltage & Frequency and Current: |
By Multi turn potentiometers |
Note : We Can Upgrade Products With Time To Give Improved Quality
