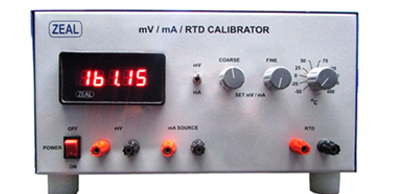

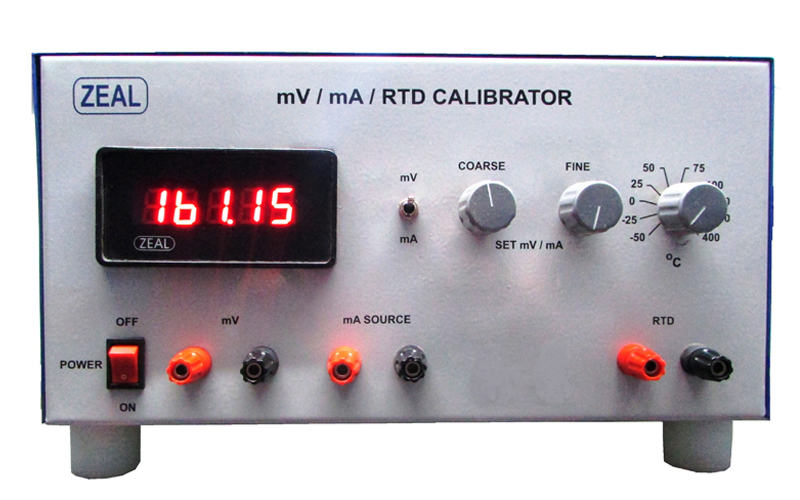

mV / mA / RTD Calibrators ( Universal Calibrator )

Technical Specification ( Mains operated ):
Make ZEAL
Model ZMPCM
Input Power 230 VAC, 50Hz / 110 VAC, 60Hz
DC Voltage Source Range 0 to 200 mV
DC Current Source Range 0 to 20 mA
RTD Range -500, -250, 00, +250, +500, +750, +1000, +2000, +3000 & +4000
Controls • Selector switch for mV/mA selection.
• mV/mA setting by coarse & fine multiturn potentiometers.
• RTD range selection by Decade Switch.
Metering 4½ Digit, 7 Segment Display
Accuracy mV/mA: 0.1% ± 3digit.
RTD: 0.1%
Protection Over Load & Short Circuit
Weight 5 kg.

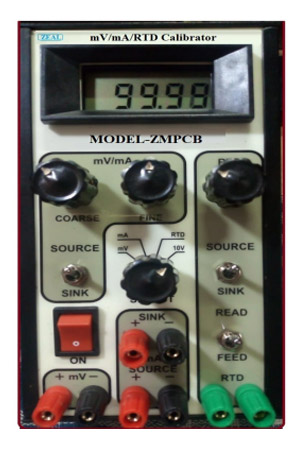

mV / mA / RTD Calibrator ( Battery Operated )
Technical Specification
Make ZEAL
Model ZMPCB
Input Power 9V x 2 Batteries 100mAH
DC Voltage Source & Measure Range 0 to 200mV
DC Current Source & Measure Range 0 to 20mA
RTD ( Fix 9 Positions ) 0, 25, 50, 75, 100, 150, 200, 300, 400°C
Metering 4½ Digit, LCD Type
Accuracy For mV & mA: 0.1% ± 3 dgt, for RTD: 0.1%
Weight 1 kg.

Note : We Can Upgrade Products With Time To Give Improved Quality
