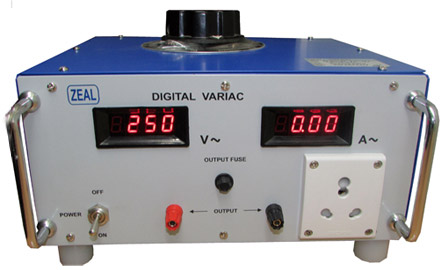

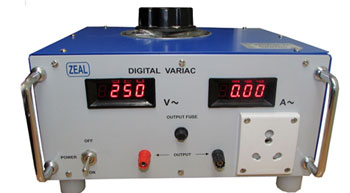

Technical Specification
| Make | ZEAL |
| Model | ZMDV5 |
| Digital Meter | voltage & Current 31/2digits |
| Input Power | 240 VAC, 50 Hz |
| Voltage Range | 0 to 270 VAC |
| Controls | Voltage setting by knob of variac |
| Current Range | 0 to 5 A AC |
| Metering | 3½ digit 7 Segment Display to indicate voltage & current |
| Accuracy | 1% |
| Protection | Against Overload |
Note : Other Models Of Required Current Range Can Be Supplied On Demand
Variacs are normally used to verify Line Regulation of Transformer, Power Supply, UPS etc. This demands monitoring of Input Voltage and Input Current of Unit under Test. User monitors these two parameters with two extra Digital Meters or sometimes with Multimeter, which is expensive.
In addition, time is wasted in making connections to external meters. Confusion in wiring cause damage of meters which is further costly.

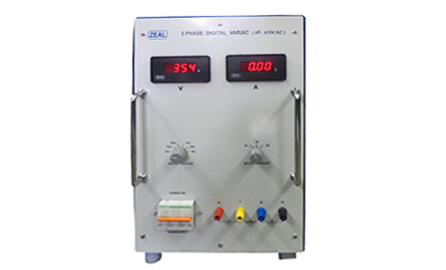

Technical Specification
| Make | ZEAL |
| Model | ZMDV |
| Input | 415 ph-ph V, 3 ph 4 Wire |
| Output | 0 to 415 V AC, 10A Output setting by Knob of Variac. |
| Accuracy of voltmeter and ammeter | (With selector switch to indicate Vrn, Vyn, Vbn, Vry, Vyb, Vbr) and ammeter (Ar, Ay, Ab) : 1.5%rdg ± 3dgt. |
| Resolution | 3½ digit |
| Protection | Overload protection by input MCCB |
Note : We Can Upgrade Products With Time To Give Improved Quality
