Time Interval Meter

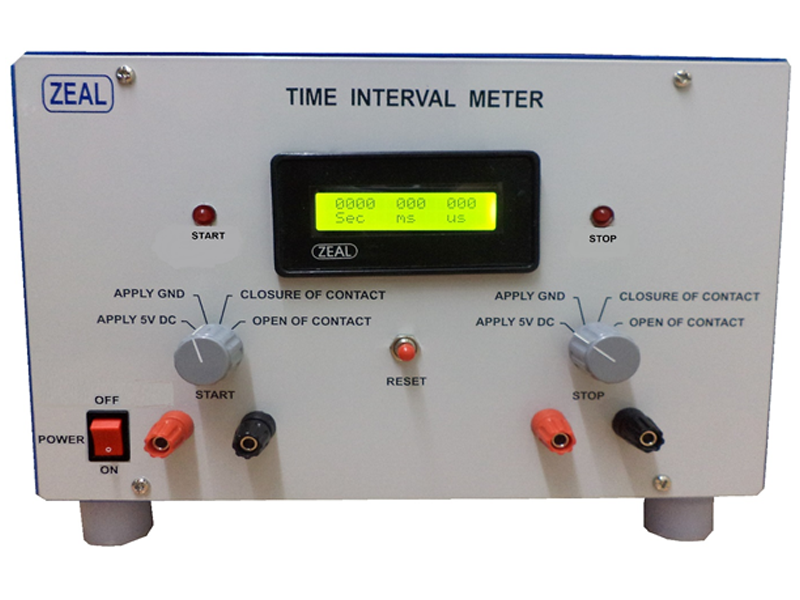

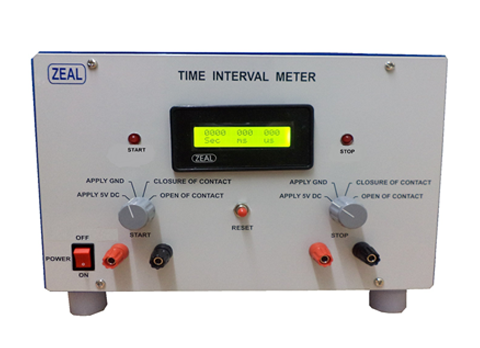

Time Interval Meter ( Micro Seconds )
Technical Specification :
Make
Zeal
Model
ZMTIMµS
Input Power
230 VAC, 50 Hz / 110 VAC, 60 Hz
Test Conditions
For both Start & Stop Pulse by Decade Switches
Test 1) Apply DC Voltage ( Up to 24 VDC Max )
Test 2) Remove Voltage
Test 3) Closure of Contact
Test 3) Open of Contact
Display Range
9999 Sec 999 Milli Sec 999 Micro Sec
Measurement Range
100µ S to 9999 Sec
Reset Facility
By Push Button
Display Type
16 X 2 Dot Matrix LCD Display
Resolution
1 Micro second
Accuracy 0.01% ± 10 µS
Protection Start & Stop Pulse are isolated from each other
Weight 5 kg.

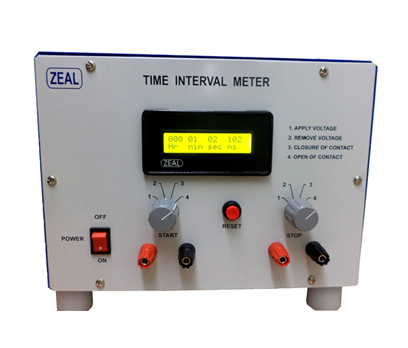

Time Interval Meter ( Milli Seconds )
Technical Specification :
Make
Zeal
Model
ZMTIMmS
Input Power
230 VAC, 50 Hz / 110 VAC, 60 Hz
Test Conditions
For both Start & Stop Pulse by Decade Switches
Test 1) Apply DC Voltage (Up to 24 VDC Max)
Test 2) Remove Voltage
Test 3) Closure of Contact
Test 3) Open of Contact
Display Range
999 Hr 59 Min 59 Sec 999 Milli Sec
Reset Facility
By Push Button
Display Type
16 X 2 Dot Matrix LCD Display
Resolution
1 Milli second
Accuracy For 999 mS 0.05% ±10 dgt.
Above 999 milli Sec 0.01 %
Protection Start & Stop Pulse are isolated from each other
Weight 5 kg.

Note : We Can Upgrade Products With Time To Give Improved Quality
