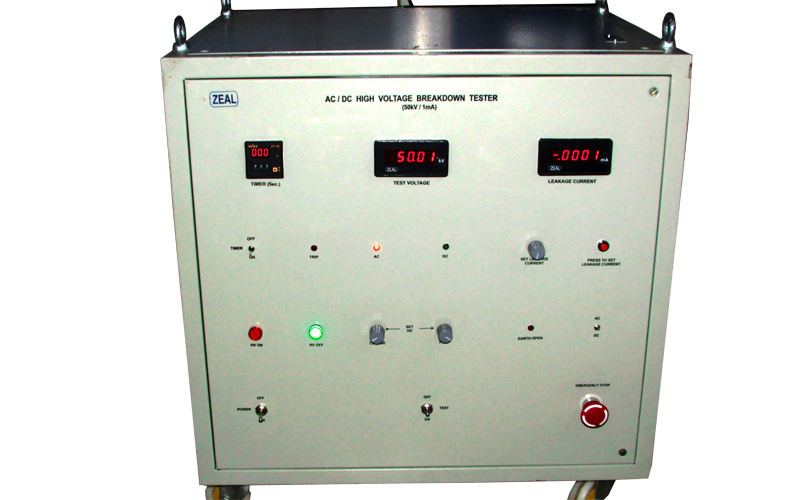

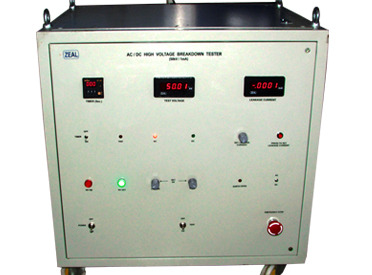

AC DC HIGH VOLTAGE TESTER (SOLID STATE & PROGRAMMABLE)



Technical Specification
Make
ZEAL
Model
Test Voltage
• DC : 0 to 5000 V continuously  variable by multi turn    potentiometer
   AC : 0 to 5000 V continuously  variable by multi turn    potentiometer (with AC or DC test voltage selector switch)
Tripping Current Adjustable 1.0 to 30.0 mA by press to set switch and potentiometer on mA meter OR Test Voltage and leakage current   programmable by external  0 to 10 V DC
Accuracy class of Test Voltage
± 0.1%± 2 least count
  Resolution: 4½ digit
Accuracy of leakage Current
± 0.5% ± 2 least count
  Resolution: 3½ digit
Display Digital Voltage: 4½ digit , Current: 3½ digit
Automatic Timer 1 to 999 second Settable by thumbwheel switches on 7   segment 3   digit display With timer ON/OFF switch
Indication for Pass/Fail
Audio (Buzzer) and visual (Neon) alarms when HV is ON,
Output Trips when breakdown occurs i.e. leakage exceeds   than set   current. Test FAIL indicated by LED
If device under test successfully handles the test voltage for   the set time duration then Test PASS indicated by LED
Power  Supply 230V±10%, single phase, 50Hz
